An Introduction to the ElectricKit Advanced
Can my Cooker be Converted?

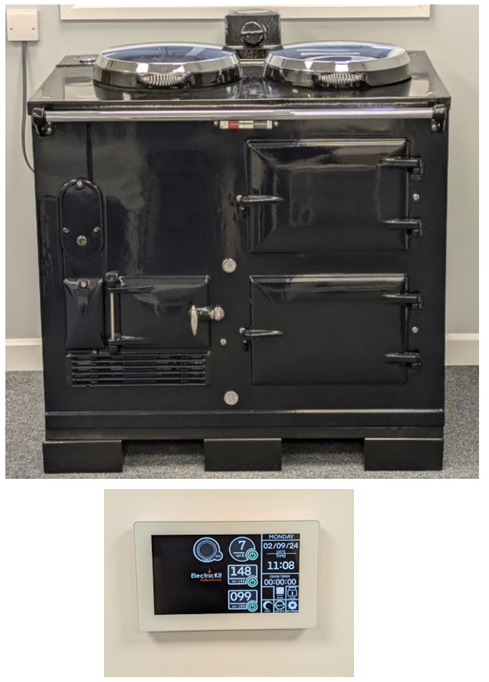

Purpose Built Pre & Post 74
- Bigger ashpit door and a bigger opening
- Originally built to either run on gas or oil
- The most popular of the different types
- Conversions available for 2 & 4 oven. Soon to be available cookers for 3 & 5 Oven Cookers

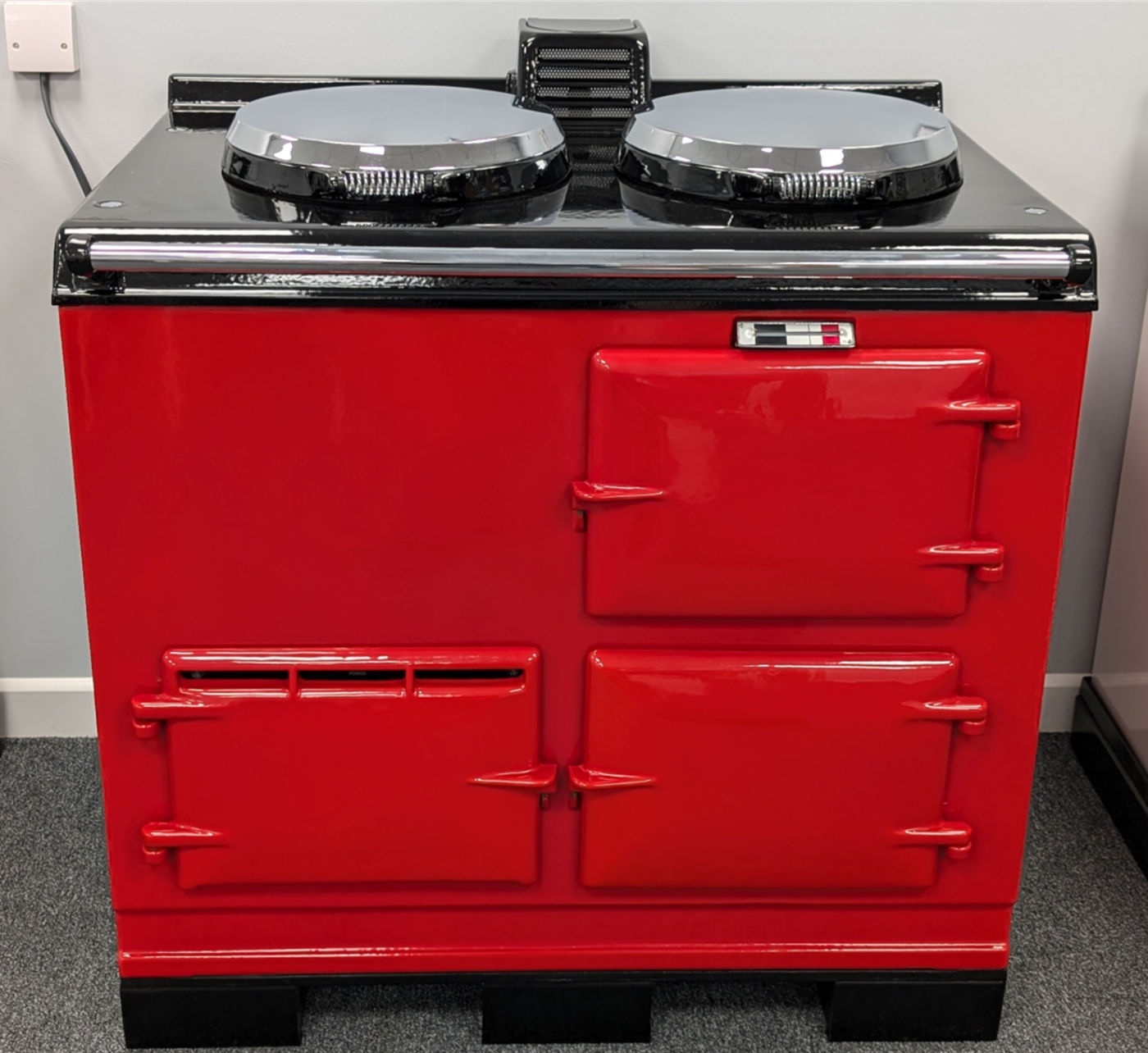

30 Amp Cooker 2 Oven & 4 Oven
- No doors on the left side
- Flat top with large vent and control covers along the back
- Conversions available for 2 & 4 Oven cookers
- Wall mounted ElectricKit Advanced control as standard

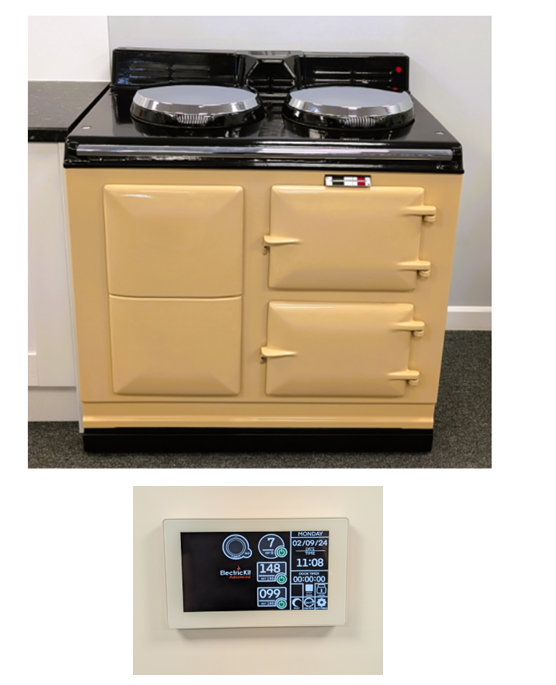

Solid Fuel Standard (Traditional 1941-1972)
- Small ash pit door and smaller opening
- Originally built to run on solid fuel
- Flat aga top
- Rectangle shaped air vent under the ashpit door.
- May still have its air lever from when it ran on solid fuel
- Conversions available for 2 & 4 oven cookers
- Unfortunately this does not include the older standard cookers (1936-1841 & earlier)
- Wall mounted ElectricKit Advanced control as standard

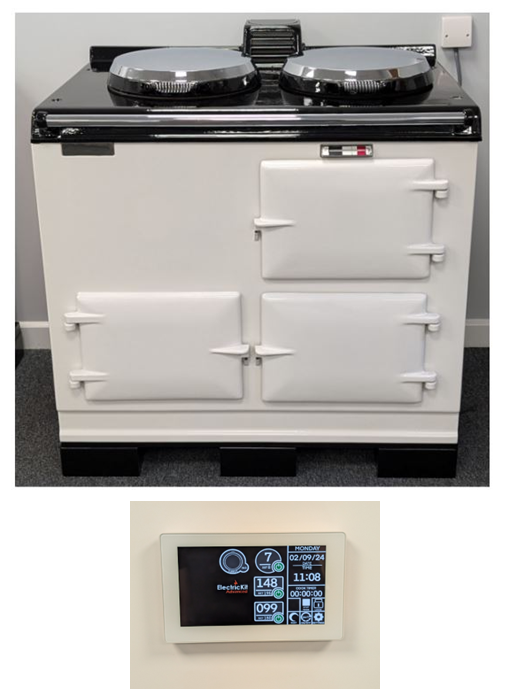

Solid Fuel Deluxe Pre & Post 74
- Bigger ash pit door (no vents) with smaller opening.
- Originally built to run on solid fuel
- Air wheel or blanking plate in top left corner
- Conversions available for 2 & 4 oven cookers
- Wall mounted ElectricKit Advanced control as standard
Enhancements include:
- Touch Screen control system
- A sleek, modern and easy to use interface
- Cook Timer
- 24/7 Integrated Timer
- Remote Control using the Smart Life App via a Smartphone or tablet
- Date & Time Display
- WIFI Compatible

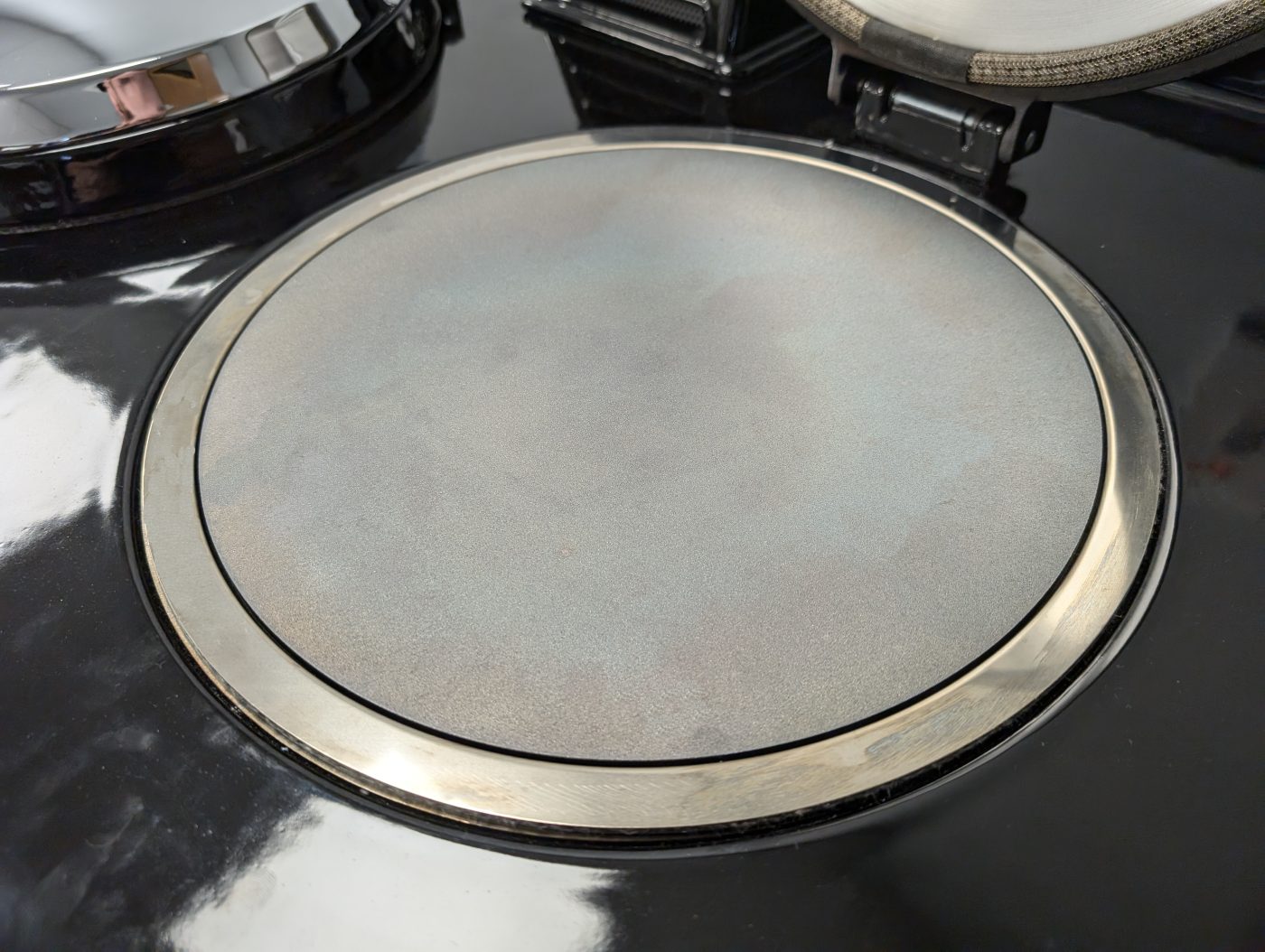

- Large 2.2kW Solid Hot Plate
Optional Upgrades
- Wall mounted touch Screen Control option (Comes as standard with 30 amp conversion)
- Induction Hob (left hob only)
- Main Radiant Hob
- Powered Warming plate
- Two ring radiant hob top for the warming cupboard and upgraded ovens

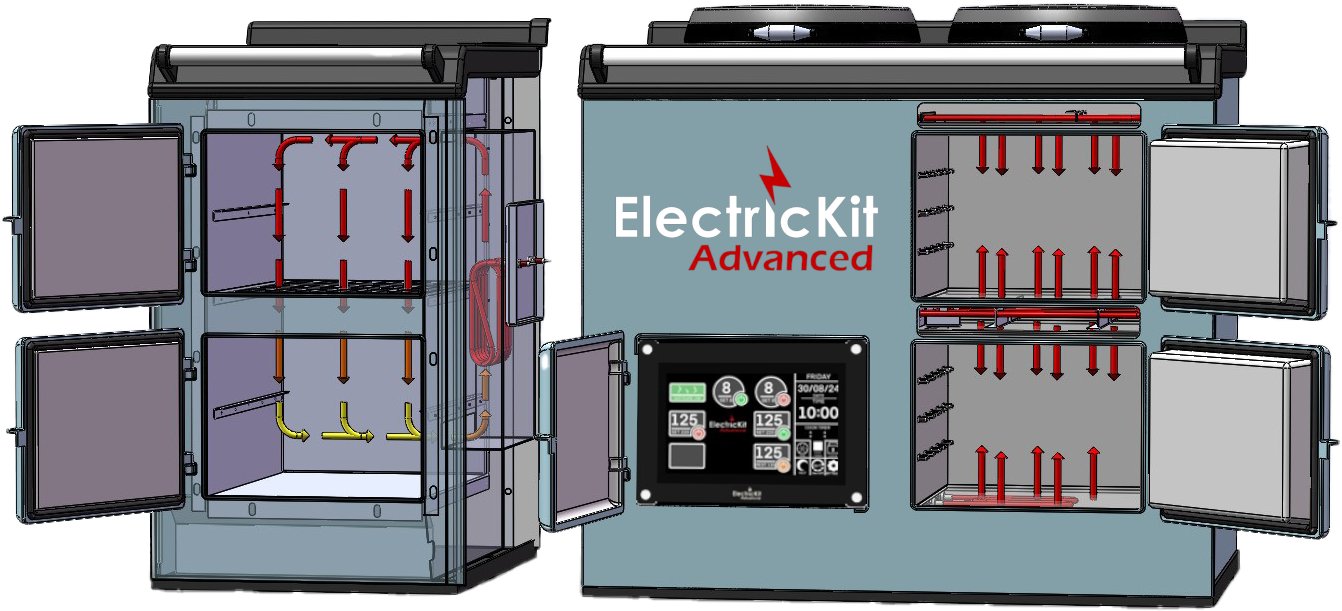

How the ElectricKit Advanced works?
Oven Control
Press the grey button to change the value to your desired temperature.
Top Oven 0-280
Bottom Oven 0-280
Then press the power button to turn the hob on (changes from red to green)
The top number represents the temperature the oven has reached and the set value is the temperature the cooker is going to reach.
Once set the top and middle oven elements kick into action heating both ovens. Under stable constant running conditions, the bottom oven runs at approximately 65% of the top oven temperature and this temperature can also be reduced with the use of a cold shelf.
The ElectricKit Advanced top oven elements have been carefully balanced to enhance and provide a uniform heat distribution throughout the top oven, this brings a much improved cooking experience which is more comparable to an original oil or gas cast iron range. The use of the bottom element can be used to accelerate the bottom oven heat up time and also raise the oven temperature further so that it can be used to bake or roast.
Left Hand Ovens (Warming Oven for a 4 oven cooker)
The left hand ovens are controlled by the oven control button on the left of the control screen (top left oven temperature range ambient to 120oC). The heating element is sited in the duct on the side of these ovens, allowing the hot air to circulate through the ovens as they were originally designed.
Rest Mode for Ovens
With rest mode you can pre set a temperature for your ovens to return to when rest mode is activated
Top Oven 0-280
Bottom Oven 0-280
Warming Oven 0-120
The power button will turn amber when rest mode is activated.
Hob Plates
The ElectricKit Advanced includes two independent & fully controllable hob plates, This enables you to choose whether you require one or both of the hobs to be running and set each hob to the required heat, whether that be frying, boiling or simmer! The left-hand hob is more powerful than the right like a traditional range cooker, giving faster heat up times than our right-hand hob. Now available with are larger hot plates to aid with large pans or multiple pans.
Press the grey button to change the value to your desired setting (1-8). The top number represents the setting the hob is at currently and the set value is the target setting. For our other hob options such as our radiant hob please click here for more information.
User Manual
We have a selection of user manuals available to download as PDF files. Please use the links below to download the manuals you require.
